Writing Reusable ZF2 Modules

Presenter Notes

What provides us with controllers and routes?

The answer is: modules

  • what is a module, and why?
  • basic structure
  • the module class
  • hooking into bootstrapping

What is a module?

Presenter Notes

  • Problem with ZF1: no reuse and sharing, due to architecture
  • ZF2's goal: share and collaborate
  • A module is a complete solution to a discrete problem or set of related problems

Modules in ZF2

  • A namespace,
  • containing a single classfile, a Module

Presenter Notes

  • Structure is left to the developer, though we have a recommended structure
  • We have a few interfaces you can implement that hint to the module manager how a module can be used

Modules can contain...

  • PHP code, including MVC code
  • Assets, such as CSS, JS, and images
  • Unit tests
  • Documentation
  • Anything

Presenter Notes

I've created a module that simply provided SkeletonCSS in a way that I could easily drop it into a project. I have modules that are basically libraries, and contain source code, unit tests, and documentation. The point is, they can provide just about anything, because the only requirement is the Module class as an entry point.

At the most basic...

module/
    Foo/
        Module.php

Presenter Notes

The module class...

Which contains:

1 <?php
2 namespace Foo;
3
4 class Module { }

Presenter Notes

  • That's really it. It's a single entry point, and completely opt-in.

Recommended module structure

ModuleName/
    Module.php
    config/
        module.config.php
    public/
        css/
        images/
        js/
    src/
        ModuleName/
            ... code ...
    test/
        ModuleName/
            ... code ...
    view/
        ... templates, etc. ...

Presenter Notes

  • I mentioned before they can contain anything. We have a recommended structure to answer the question of "where do I put X, Y, or Z?"
  • Discuss some of the reasons behind the decisions

Modules typically provide...

  • Autoloading artifacts
  • Basic configuration, including routes
  • Event listener registration

Presenter Notes

Commonly, we will provide DI and routing configuration.

Providing autoloading hints

 1 <?php
 2 namespace Foo;
 3 use Zend\Module\Consumer\AutoloaderProvider;
 4 class Module implements AutoloaderProvider
 5 {
 6     public function getAutoloaderConfig()
 7     {
 8       return array(
 9         'Zend\Loader\ClassMapAutoloader' => array(
10           include __DIR__ . '/autoload_classmap.php',
11         ),
12         'Zend\Loader\StandardAutoloader' => array(
13           'namespaces' => array(
14             'Foo' => __DIR__ . '/src/Foo',
15           ),
16         ),
17       );
18     }
19 }

Presenter Notes

  • Basically, returning a configuration array to pass to the AutoloaderFactory. This ensures reuse of the same autoloader objects, but also means that the AutoloaderListener will be able to cache this configuration for later use.

Providing configuration

 1 <?php
 2 namespace Foo;
 3
 4 class Module
 5 {
 6     public function getConfig()
 7     {
 8         return include __DIR__
 9                 . '/config/module.config.php';
10     }
11 }

Presenter Notes

  • The config listener merges this configuration with the config it stores internally.
  • You can also use other config formats. Just return an array or Traversable object

Typical module configuration

 1 <?php
 2 return array('di' => array(
 3   'instance' => array(
 4     'Zend\Mvc\Router\RouteStack' => array('parameters' => array(
 5       'routes' => array(
 6         'foo' => array(
 7           'type' => 'Literal',
 8           'options' => array(
 9             'route' => '/foo',
10             'defaults' => array(
11               'controller' => 'Foo\Controller\IndexController',
12             ),
13           ),
14           'may_terminate' => true,
15           'child_routes' => aray( /* ... */ ),
16 )))))));

Presenter Notes

  • Note lack of environments; we do envs via glob merging
  • base root! This allows us to override the base route in order to provide an alternate starting segment to our module's routes

Event registration (post-init tasks)

 1 <?php
 2 namespace Foo;
 3 use Zend\EventManager\StaticEventManager,
 4     Zend\Module\Manager as ModuleManager;
 5 class Module
 6 {
 7     public function init(ModuleManager $manager)
 8     {
 9         $events = StaticEventManager::getInstance();
10         $events->attach(
11             'bootstrap', 'bootstrap',
12             array($this, 'bootstrap')
13         );
14     }
15
16     public function bootstrap($e)
17     {
18         $app    = $e->getParam('application');
19         // do some stuff...
20         // Often, registering other listeners
21     }
22 }

Presenter Notes

  • a special "InitTrigger" listener will call init() if it exists
  • this is a good place to register events
  • shows execution order: module manager aggregates items and triggers events; we then execute the bootstrap, which triggers other events; and then we run the application
  • Event at bootstrap knows about the application, config, and module manager

Module-specific Event Listeners

 1 <?php
 2 namespace Foo;
 3 /* ... */
 4 class Module
 5 {
 6     /* ... */
 7     public function bootstrap($e)
 8     {
 9         $app    = $e->getParam('application');
10         $app->events()->attach('route', array($this, 'moduleCheck'), -100);
11     }
12
13     public function moduleCheck($e)
14     {
15         $matches = $e->getRouteMatch();
16         $controller = $matches->getParam('controller', '');
17         if (0 !== strpos($controller, __NAMESPACE__)) {
18             // Not our module
19             return;
20         }
21
22         // Do cool stuff!
23     }
24 }

Presenter Notes

  • This allows attaching module-specific listeners, or doing module-specific initialization. Since $e is the MvcEvent, and triggered by the Application, this gives us access to the application, configuration, and the Locator instance.

Registering Modules with the Application

Don't forget to register your module!

 1 <?php
 2 // config/application.config.php
 3 return array(
 4   'modules' => array(
 5     'Application',
 6     /* add your module to the list */
 7   ),
 8   'module_listener_options' => array(
 9     /* ... */
10   ),
11 );

Presenter Notes

  • The Module.php and Module class needs to be discoverable
  • The app needs to know to look for it in the first place
  • Explicit is always best

Getting Your Hands Dirty: Contact!

Presenter Notes

The idea now is to take the information we've got, and build a new module for the skeleton app I've handed around. We'll configure a mail transport and mail message, pass them into a controller, and do something with it all.

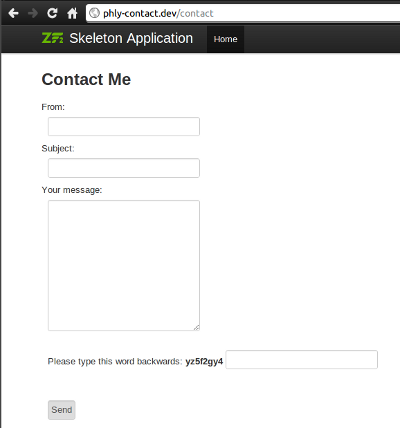

The goal:

  • Display a contact form
  • Validate the contact form, and re-display if necessary
  • Send an email via a configured mail transport, and display a "thank you" page

Presenter Notes

To begin:

1 cd ZendSkeletonApplication
2 mkdir module/PhlyContact
3 cd module/PhlyContact
4 mkdir -p config src/PhlyContact view/contact

Presenter Notes

This sets up the basic structure we need for the files we'll be creating.

Routes: Base route

 1 <?php
 2 // module/PhlyContact/config/module.config.php
 3 return array('di' => array('instance' => array(
 4 'Zend\Mvc\Router\RouteStack' => array('parameters' => array(
 5   'routes' => array(
 6     'contact' => array(
 7       'type' => 'Literal',
 8       'options' => array(
 9         'route' => '/contact',
10         'defaults' => array(
11           'controller' => 'PhlyContact\Controller\ContactController',
12           'action'     => 'index',
13         ),
14       ),
15       'may_terminate' => true,
16       'child_routes' => array(/* ... */),
17     ),
18   ),
19 )),
20 )));

Presenter Notes

Routes: Process form

 1 <?php
 2 /* this is a child route */
 3 'process' => array(
 4   'type' => 'Literal',
 5   'options' => array(
 6     'route' => '/process',
 7     'defaults' => array(
 8       'action'     => 'process',
 9     ),
10   ),
11 ),

Presenter Notes

Routes: Thank you page

 1 <?php
 2 /* this is a child route */
 3 'thank-you' => array(
 4   'type' => 'Literal',
 5   'options' => array(
 6     'route' => '/thank-you',
 7     'defaults' => array(
 8       'action'     => 'thank-you',
 9     ),
10   ),
11 ),

Presenter Notes

Defining the form

  • Email
  • Subject
  • Body
  • Captcha
  • CSRF-protection
  • Submit button

Presenter Notes

Contact Form

 1 <?php
 2 // module/PhlyContact/src/PhlyContact/ContactForm.php
 3 namespace PhlyContact;
 4
 5 use Zend\Captcha\Adapter as CaptchaAdapter,
 6     Zend\Form\Form,
 7     Zend\Validator\Hostname as HostnameValidator;
 8
 9 class ContactForm extends Form
10 {
11     protected $captchaAdapter;
12
13     public function __construct($captchaAdapter = null)
14     {
15         if ($captchaAdapter instanceof CaptchaAdapter) {
16             $this->setCaptchaAdapter($captchaAdapter);
17             parent::__construct(null);
18             return;
19         };
20
21         parent::__construct($captchaAdapterj);
22     }
23     /\* ... \*/

Presenter Notes

Contact Form

 1 <?php
 2 namespace PhlyContact;
 3
 4 use Zend\Captcha\Adapter as CaptchaAdapter,
 5     Zend\Form\Form,
 6     Zend\Validator\Hostname as HostnameValidator;
 7
 8 class ContactForm extends Form
 9 {
10     /\* ... \*/
11     protected function setCaptchaAdapter(CaptchaAdapter $captcha)
12     {
13         $this->captchaAdapter = $captcha;
14     }
15     /\* ... \*/

Presenter Notes

Contact Form

 1 <?php
 2 namespace PhlyContact;
 3
 4 use Zend\Captcha\ReCaptcha,
 5     Zend\Form\Form,
 6     Zend\Validator\Hostname as HostnameValidator;
 7
 8 class ContactForm extends Form
 9 {
10     public function init()
11     {
12         /\* setup all elements \*/
13         $this->addElement('captcha', 'captcha', array(
14             'required'       => true,
15             'captcha'        => $this->captchaAdapter,
16         ));
17         /\* finish setting up \*/
18     }

Presenter Notes

Controller: Dependencies

 1 <?php
 2 namespace PhlyContact\Controller;
 3
 4 use PhlyContact\ContactForm,
 5     Zend\Mail\Transport,
 6     Zend\Mail\Message as Message,
 7     Zend\Mvc\Controller\ActionController,
 8     Zend\View\Model\ViewModel;
 9
10 class ContactController extends ActionController
11 {
12     protected $form;
13     protected $message;
14     protected $transport;
15
16     public function setMessage(Message $message) {
17         $this->message = $message;
18     }
19
20     public function setMailTransport(Transport $transport) {
21         $this->transport = $transport;
22     }
23
24     public function setContactForm(ContactForm $form) {
25         $this->form = $form;
26     }

Presenter Notes

Controller: Display form

1 <?php
2 public function indexAction()
3 {
4     return array('form' => $this->form);
5 }

Presenter Notes

Controller: Process form

 1 <?php
 2 public function processAction()
 3 {
 4     if (!$this->request->isPost()) {
 5         $this->redirect->toRoute('contact');
 6     }
 7     $post = $this->request->post()->toArray();
 8     $form = $this->form;
 9     if (!$form->isValid($post)) {
10         $model = new ViewModel(array(
11             'error' => true,
12             'form'  => $form
13         ));
14         $model->setTemplate('contact/index');
15         return $model;
16     }
17
18     // send email...
19     $this->sendEmail($form->getValues());
20
21     return $this->redirect()->toRoute('contact/thank-you');
22 }

Presenter Notes

Controller: Send email

 1 <?php
 2 protected function sendEmail(array $data)
 3 {
 4     $from    = $data['from'];
 5     $subject = '[Contact Form] ' . $data['subject'];
 6     $body    = $data['body'];
 7
 8     $this->message->addFrom($from)
 9                   ->addReplyTo($from)
10                   ->setSubject($subject)
11                   ->setBody($body);
12     $this->transport->send($this->message);
13 }

Presenter Notes

Controller: Thank you page

 1 <?php
 2 public function thankYouAction()
 3 {
 4     $headers = $this->request->headers();
 5     if (!$headers->has('Referer')
 6         || !preg_match('#/contact$#',
 7               $headers->get('Referer')->getFieldValue())
 8     ) {
 9         $this->redirect->toRoute('contact');
10         return $this->response;
11     }
12
13     // do nothing...
14     return array();
15 }

Presenter Notes

Add view scripts: Form

 1 <?php
 2 // module/PhlyContact/view/contact/index.phtml
 3 $this->headTitle()->prepend('Contact'); ?>
 4 <section class="contact">
 5 <h2>Contact Me</h2>
 6
 7 <?php if ($this->error): ?>
 8 <p class="error">
 9     There were one or more isues with your submission. Please correct them
10     as indicated below.
11 </p>
12 <?php endif ?>
13
14 <?php
15 $form = $this->form;
16 $form->setAction($this->url('contact/process'));
17 $form->setMethod('post');
18 echo $form->render($this);
19 ?>
20 </section>

Presenter Notes

Add view scripts: Thank You

 1 <?php
 2 // module/PhlyContact/view/contact/thank-you.phtml
 3 $this->headTitle()->prepend('Contact');
 4 $this->headTitle()->prepend('Thank You!');
 5 ?>
 6 <section class="contact">
 7 <h2>Thank you!</h2>
 8
 9 <p>
10     Your message has been sent!
11 </p>
12 </section>

Presenter Notes

DI Definitions: Controller/Form

 1 <?php
 2 /* inside module/PhlyContact/config/module.config.php */
 3 'di' => array(
 4   'definition' => array('class' => array(
 5     'PhlyContact\ContactForm' => array(
 6       '__construct' => array(
 7         'required'  => true,
 8         'captchaAdapter' => array(
 9           'required' => true,
10           'type'     => 'Zend\Captcha\Adapter',
11         ),
12       ),
13     ),
14   )),
15 ),

Presenter Notes

DI Definitions: Message

 1 <?php
 2 /* inside module/PhlyContact/config/module.config.php,
 3    in the di -> definition array */
 4 'Zend\Mail\Message' => array(
 5   'addTo' => array(
 6     'emailOrAddressList' => array(
 7       'type' => false, 'required' => true),
 8     'name' => array('type' => false, 'required' => false),
 9   ),
10   'addFrom' => array(
11     'emailOrAddressList' => array(
12       'type' => false, 'required' => true),
13     'name' => array('type' => false, 'required' => false),
14   ),
15   'setSender' => array(
16     'emailOrAddressList' => array(
17       'type' => false, 'required' => true),
18     'name' => array('type' => false, 'required' => false),
19   ),
20 ),

Presenter Notes

Why? so we can specify the sender and recipient for messages!

DI Preferences and aliases

1 <?php
2 /* inside module/PhlyContact/config/module.config.php,
3    in the "di" array */
4   'preferences' => array(
5     'Zend\Mail\Transport'  => 'Zend\Mail\Transport\Smtp',
6   ),
7 );

Presenter Notes

  • We're telling DI that when a Transport is requested, use an SMTP transport

DI Configuration: Controller/Form

 1 <?php
 2 /* inside module/PhlyContact/config/module.config.php,
 3    in the "di -> instance" array */
 4 'PhlyContact\ContactForm' => array('parameters' => array(
 5     'captchaAdapter' => 'Zend\Captcha\Dumb',
 6 )),
 7 'PhlyContact\Controller\ContactController' => array(
 8   'parameters' => array(
 9     'form'      => 'PhlyContact\ContactForm',
10     'message'   => 'Zend\Mail\Message',
11     'transport' => 'Zend\Mail\Transport',
12   )
13 ),

Presenter Notes

  • If the controller is pulled, so are its dependencies.
  • We tell it the preferred Transport
  • and how to configure it

DI Configuration: View scripts

 1 <?php
 2 return array('di' => array(
 3 /* inside module/PhlyContact/config/module.config.php,
 4    in the "di -> instance" array */
 5 'Zend\View\Resolver\TemplateMapResolver' => array('parameters' => array(
 6     'map' => array(
 7       'contact/index'     => __DIR__ . '/../view/contact/index.phtml',
 8       'contact/thank-you' => __DIR__ . '/../view/contact/thank-you.phtml',
 9     ),
10 )),
11 'Zend\View\Resolver\TemplatePathStack' => array('parameters' => array(
12     'paths' => array('contact' => __DIR__ . '/../view'),
13 )),

Presenter Notes

Create an autoloader map

1 cd module/PhlyContact
2 php ../../vendor/ZendFramework/bin/classmap_generator.php \
3 -l ./src \
4 -o ./autoload_classmap.php

Presenter Notes

Creates "autoload_classmap.php" file in module root

Module class: autoloading

 1 <?php
 2 // module/PhlyContact/Module.php
 3 namespace PhlyContact;
 4
 5 use Zend\Module\Consumer\AutoloaderProvider;
 6
 7 class Module implements AutoloaderProvider
 8 {
 9   public function getAutoloaderConfig()
10   {
11     return array(
12       'Zend\Loader\ClassMapAutoloader' => array(
13         __DIR__ . '/autoload_classmap.php'
14       ),
15       'Zend\Loader\StandardAutoloader' => array(
16         'namespaces' => array(
17           __NAMESPACE__ => __DIR__ . '/src/' . __NAMESPACE__,
18         ),
19       ),
20     );
21   }
22   /* ... */

Presenter Notes

Module class: configuration

 1 <?php
 2 namespace PhlyContact;
 3
 4 use Zend\Module\Consumer\AutoloaderProvider;
 5
 6 class Module implements AutoloaderProvider
 7 {
 8   /* ... */
 9
10   public function getConfig()
11   {
12     return include __DIR__ . '/config/module.config.php';
13   }
14 }

Presenter Notes

Add application configuration

 1 <?php
 2 // config/autoload/module.phly-contact.local.config.php
 3 return array('di' => array(
 4   'instance' => array(
 5     'PhlyContact\Controller\ContactController' => array('parameters' => array(
 6       'transport' => 'Zend\Mail\Transport\File',
 7     ))
 8     'PhlyContact\ContactForm' => array('parameters' => array(
 9       'captchaAdapter'  => 'Zend\Captcha\Dumb',
10     ),
11     'Zend\Mail\Transport\FileOptions' => array('parameters' => array(
12       'path' => sys_get_temp_dir(),
13     )),
14     'Zend\Mail\Message' => array('parameters' => array(
15       'Zend\Mail\Message::addTo:emailOrAddressList' => 'me@mwop.net',
16       'Zend\Mail\Message::setSender:emailOrAddressList' => 'me@mwop.net',
17     )),
18   )),
19 );

Presenter Notes

Add the module to the app

1 <?php
2 // config/application.config.php
3 /* ... */
4 'modules' => array(
5     'Application',
6     'PhlyContact', // <- add this
7 ),
8 'module_listener_options' => array( /* ... */)
9 /* ... */

Presenter Notes

Visit the page

http://phly-contact.dev/contact

Contact Form

Presenter Notes

Why is it reusable?

We can change the base root.

1 <?php
2 // config/autoload/module.phly-contact.local.config.php
3 'Zend\Mvc\Router\RouteStack' => array('parameters' => array(
4   'routes' => array(
5     'contact' => array(
6       'type' => 'Literal',
7       'options' => array(
8         'route' => '/contact-us',

Presenter Notes

Why is it reusable?

We can change the mail transport and message defaults.

 1 <?php
 2 // config/autoload/module.phly-contact.local.config.php
 3 'preferences' => array(
 4   'Zend\Mail\Transport' => 'Zend\Mail\Transport\Smtp',
 5 )
 6 'instance' => array(
 7   'Zend\Mail\Message' => array('parameters' => array(
 8     'Zend\Mail\Message::addTo:emailOrAddressList' => 'you@your.tld',
 9     'Zend\Mail\Message::setSender:emailOrAddressList' => 'you@your.tld',
10   )),
11 )),

Presenter Notes

We would need to specify options for the transport, obviously.

Why is it reusable?

We can change which CAPTCHA type we want to use.

1 <?php
2 // config/autoload/module.phly-contact.local.config.php
3 'PhlyContact\ContactForm' => array('parameters' => array(
4     'captchaAdapter'  => 'Zend\Captcha\ReCaptcha',
5 ),

Presenter Notes

We would need to specify options for the adapter, obviously.

Review

  • We created routes
  • We created a form (kind of!)
  • We created a controller, with end points for landing, processing, and displaying a thank you page
  • We created the necessary views
  • We setup DI configuration for our form
  • We setup DI configuration for the mail transport and message
  • We created an autoloader classmap
  • We created a Module class for our module
  • We added the module to the application

Presenter Notes

Wrapping Up

Presenter Notes

Resources

  • The code we saw today:
    • http://github.com/weierophinney/phly_contact
  • This presentation:
    • http://mwop.net/slides/2012-03-14-Zf2Modules/Zf2Modules.html
  • The ZF2 subsite
    • http://framework.zend.com/zf2

Presenter Notes

Thank You!

  • Feedback?
    • http://framework.zend.com/
    • http://twitter.com/weierophinney

Presenter Notes
