Async Expressive

Matthew Weier O'Phinney

Terminology

• PHP-FIG (or FIG): Framework Interop Group (standards body)
• PSR-7: HTTP Message interfaces
• PSR-15: HTTP Request Handler interfaces
• PSR-17: HTTP Message Factory interfaces
• PSR-14: Event Dispatcher interfaces

Goals

Demonstrate how async enables

• Application-specific servers
• Better performance, generally due to...
• Deferred processing.

Node.js

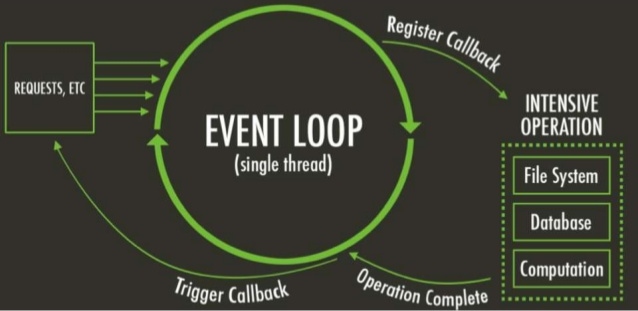

event loop

Why?

Shared Nothing

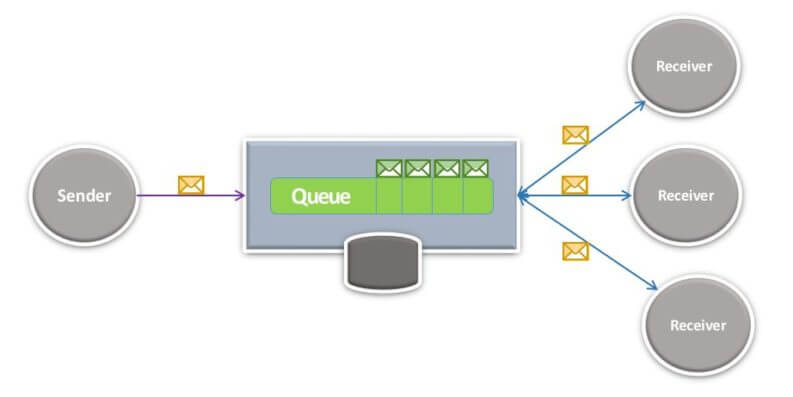

Message Queues

Parallel Processing

Async Programming

Callbacks

executeSomeAsyncProcess(
    $withData,
    $andA,
    $callbackToExecuteOnCompletion
);


function ($error, $result)
{
    if ($error) {
    }
}


Event Dispatcher

$dispatcher->addListener(function (SomeEvent $e) {
    // do work
});

// later:
$dispatcher->trigger($someEvent);


Callback Hell

doFirst($payload, function ($err, $result) {
    doSecond($result, function ($err, $result) {
        doThird($result, function ($err, $result) {
            // finally got what we needed
        });
    });
});


Promises

$promise = someAsyncOperationReturningAPromise($with, $data);
$promise
    ->then($someCallbackToExecuteOnResolution)
    ->then($someAdditionalCallbackToExecuteOnResolutionOfPrevious)
    ->catch($someCallbackToExecuteOnRejection);


function then($successCallback = null, $rejectionCallback = null);


$promise->then(null, $someCallbackToExecuteOnRejection);


async/await

async function ping() {
  const res = await fetch('/api/ping');
  return await res.json();
}

let ack = ping();


Coroutines

$result = $statement->execute($data);


Swoole provides...

• an event loop
• async HTTP, network, and socket clients
• network servers

Swoole features

• Spawning multiple workers per server
• Spawning separate task workers
• Daemonization of servers
• Coroutine support for many TCP/UDP and socket operations

A Basic Web Server

use Swoole\Http\Server as HttpServer;

$server = new HttpServer('127.0.0.1', 9000);
$server->on('start', function ($server) {
    echo "Server started at http://127.0.0.1:9000\n";
});
$server->on('request', function ($request, $response) {
    $response->header('Content-Type', 'text/plain');
    $response->end("Hello World\n");
});
$server->start();


$response->end() is problematic

If you forget to call it:

• the connection will remain open until a network timeout occurs;
• the current process will remain open; which means
• no next tick of the event loop.

Deferment

$server->defer(function () {
    // work to defer
});


Task Workers

Prepare the server
for tasks

• Configure the number of task workers to use (required!)
• Register a listener to handle incoming tasks.
• Register a listener to execute on task completion.

Registering task workers

$server->set(['task_worker_num' => 4]);
$server->on('task', function ($server, $taskId, $data) {
    // Handle task

    // Finish task:
    $server->finish('');
});
$server->on('finish', function ($server, $taskId, $returnValue) {
    // Task is complete
});


Triggering a task

$server->task($someData);


A Basic TaskWorker

class Task {
    public $handler;   // callable
    public $arguments; // array
}

$server->on('task', function ($server, $taskId, $task) {
    if (! $task instanceof Task) {
        $server->finish('');
        return;
    }

    ($task->handler)(...$task->arguments);
    $server->finish('');
});


A note on debugging

Coroutine support in Swoole is incompatible with XDebug and XHProf!

What is Expressive?

Expressive is a middleware application framework built on PSR-15

namespace Psr\Http\Server;
use Psr\Http\Message\ResponseInterface as Response;
use Psr\Http\Message\ServerRequestInterface as Request;

interface RequestHandlerInterface {
    public function handle(Request $request) : Response;
}

interface MiddlewareInterface {
    public function process(
        Request $request,
        RequestHandlerInterface $handler
    ) : Response;
}


Middleware Flow

Expressive also provides...

• Dependency Injection wiring abstraction
• Routing abstraction
• Template abstraction
• Error handling
• Application and per-route pipelines

Middleware + Swoole

$server->on('request', function ($request, $response) use ($app) {
    $appResponse = $app->handle(transformRequest($request));
    transformResponse($response, $appResponse);
});


Codified in zend-expressive-swoole

Starting your Expressive+Swoole server

$ ./vendor/bin/zend-expressive-swoole start


Async Operations

Coroutines

$result = $mysqli->query($sql);
while ($data = $result->fetch_assoc()) {
    // ...
}


Deferment

$server->defer($callback);


Task Workers

$server->task($someData);


phly/phly-swoole-taskworker

use Phly\Swoole\TaskWorker\Task;

$server->task(new Task(function ($event) {
    // handle the event
}, $event));


Listener deferment

$listener = new QueueableListener($server, $listener);

// Where QueueableListener is equivalent to:
function (object $event) use ($server, $listener) : void {
    $server->task(new Task($listener, $event));
}


$this->dispatcher->dispatch($someEvent);


Daemonization

return [
    'zend-expressive-swoole' => [
        'enable_coroutine' => true,
        'swoole-http-server' => [
            'mode' => SWOOLE_PROCESS,
        ],
    ],
];


$ ./vendor/bin/zend-expressive-swoole start --daemonize


Dockerization

# DOCKER-VERSION        1.3.2

FROM mwop/phly-docker-php-swoole:7.2-alpine

# Project files
COPY . /var/www/

# Reset "local"/development config files
WORKDIR /var/www
RUN rm -f config/development.config.php && \
  rm config/autoload/*.local.php && \
  mv config/autoload/local.php.dist config/autoload/local.php

# Overwrite entrypoint
RUN echo "#!/usr/bin/env bash
  (cd /var/www ; ./vendor/bin/zend-expressive-swoole start)
" > /usr/local/bin/entrypoint


Pitfalls

Stateful Services

Stateful Services: Templating

$template->addDefaultParam('*', 'user', $user);


$metadata = $resourceGenerator
    ->getMetadataMap()
    ->get(Collection::class);
$metadata->setQueryStringArguments(array_merge(
    $metadata->getQueryStringArguments(),
    ['query' => $query]
));


Stateful Services: Validation

if (! $validator->isValid($value)) {
    $messages = $validator->getMessages();
}


echo implode("
", $validator->getMessages())


Stateful Services: Auth

return $handler(
    $request->withAttribute('user', $auth->getIdentity())
);


Resolving State Issues

Decoration

class StatelessVariant implements SomeInterface
{
    private $proxy;

    public function __construct(SomeInterface $proxy)
    {
        $this->proxy = $proxy;
    }
}


public function morphState($data) : void
{
    throw new CannotChangeStateException();
}


Extension

class StatelessVariant extends OriginalClass
{
    public function morphState($data) : void
    {
        throw new CannotChangeStateException();
    }
}


Factories as Services

public function __construct(SomeClass $dependency) : void


public function __construct(SomeClassFactory $factory) : void


$dependency = ($this->factory)();


Stateful Messages

Pass stateful data to the service:

$allowed = $this->acl->isUserAllowed(
    $request->getAttribute('user')
);


$allowed = $this->acl->isRequestAllowed($request);


Request Attributes

Instead of:

$template->addDefaultParam(/* ... */);


public function process(
    Request $request,
    RequestHandler $handler
) : Response {
    return $handler->handle(
        $request->withAttribute('template_params', (object) [])
    );
}


Request Attributes (cont.)

to which we push data:

$params = $request->getAttribute('template_params');
$params->user = $this->deriveUserFromRequest($request);
return $handler->handle($request);


Request Attributes (cont.)

$templateParams = $request->getAttribute('template_params');
return new HtmlResponse($this->renderer->render(
    'some::template',
    array_merge((array) $templateParams, [
        // more specific parameters
    ])
));


Sessions

Use zend-expressive-session

and its zend-expressive-session-cache adapter

Wrap Up

Benefits

• Single bootstrap
• Deferment
• Single container services

Practices

• Abstract async-specific details.
• Make container services stateless
• Aggregate state in the requst
• Avoid the session extension

Resources

• https://www.swoole.co.uk
• https://getexpressive.org
• https://docs.zendframework.com/zend-expressive-swoole/
• https://github.com/phly/phly-swoole-taskworker/
• https://docs.zendframework.com/zend-expressive-session/
• https://docs.zendframework.com/zend-expressive-session-cache/
